Health & Safety Newsletter – Spring 2013

All the latest HSE news, health and safety advice, case studies, court stories, and guidance is now available to everyone free of charge – and it’s all just a click away.

Yes, the long-established Health & Safety Newsletter has had a make-over. The printed version has been replaced with a jam-packed e-version which opens the door to a whole world of health and safety information. Why not join the thousands of subscribers who have already signed up to receive this free quarterly newsletter?



Health & Safety Newsletter – Spring 2013

In this issue:

plus lots more including court stories, real-life case studies and new guidance

Horizon win Roofing contract for Hallsall Construction

Construction starts on 25 new affordable homes in Lanner

Site_Signage.jpgWork to build 25 new affordable homes for Coastline Housing has started on site this week at the Tresavean Estate in Lanner. The project had originally been scheduled to start in the autumn of 2011 however was subject to a judicial review.
The go ahead was given in late February following a favourable outcome for Coastline in the judicial review. The new homes will be built to the Code for Sustainable Homes Level 3 and will be available for affordable rent and shared ownership early in 2014.

Mini Stonewold on the dark side

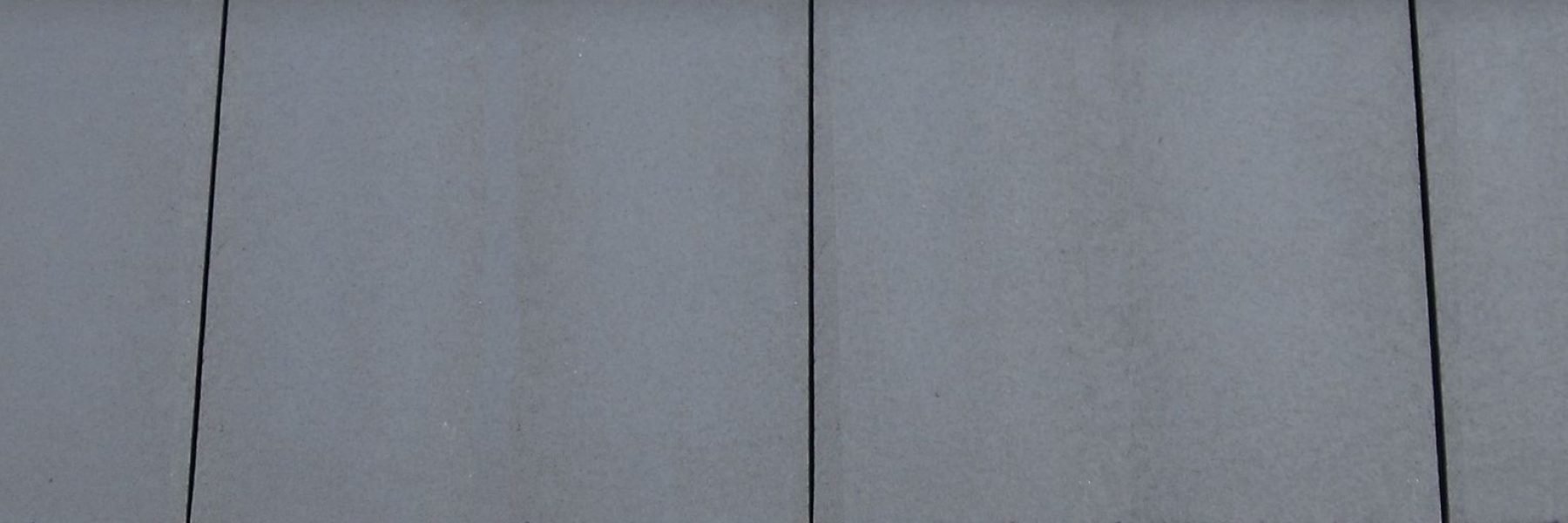

Redland is introducing a new, darker grey colour to its popular Mini Stonewold product range.

The existing Slate Grey colour presents a pleasing mid-grey finish that comes from the through coloured construction of the product. However, in order to provide a solution for customers looking for a darker grey Redland is introducing Mini Stonewold in the new Charcoal Grey colour.

The dark grey colour is achieved through the application of a dark grey coating over the the top surface and edges of the slate grey tile body to give a satisfying rich hue.

Mini Stonewold is one of our most flexible and economical concrete slate products, featuring interlocking edges for simple construction. Mini Stonewold is a flat concrete slate that can be laid at pitches as low as 17.5o in both new build or re-roofing projects.

The new Mini Stonewold Charcoal Grey is offered with a matching Half Slate Pair together with an 8.8k ThruVent, complementary Universal Angle fittings for ridges and hips as well as a RedLine Vent Tile. All the dimensions, pitch parameters and headlaps are the same as existing Mini Stonewold colours.

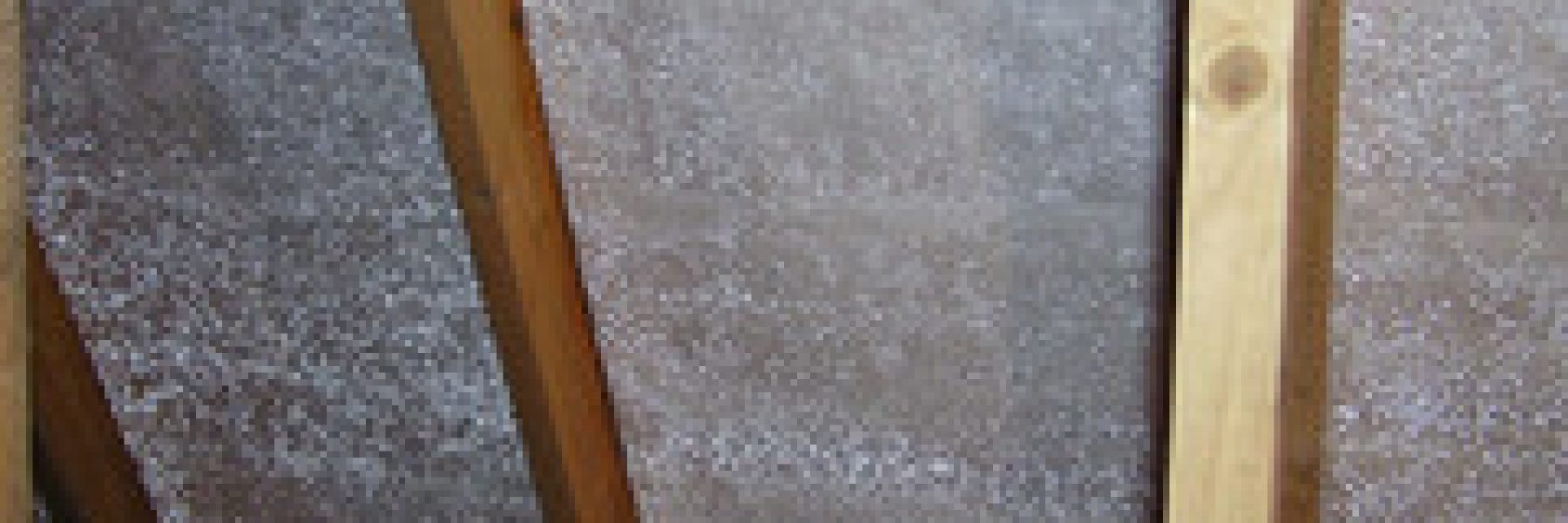

Avoiding Condensation in pitched roofs

Vapour permeable underlays were once heralded as the answer to condensation in cold roof spaces. It is true that their introduction to the market has helped greatly, but experience is telling us clearly that traditional ventilation is actually the only way to be sure to avoid a problem that is most acute in newly completed houses.

AVOIDING CONDENSATION IN PITCHED ROOFS

This fact was recognised by the NHBC a couple of years ago when an increasing number of complaints regarding condensation-related damage in roofs drew attention to the problem. The organisation produced guidance in 2011 to remind builders that ventilation, at eaves and particularly at ridge level, is the recommended system for cold roofs.

The science is relatively straightforward: the rates of moisture removal that can be achieved via ventilation (convection) are far greater than can be achieved by diffusion, the method that most vapour permeable underlays rely on for their function.

The starting point is effective eaves-to-eaves ventilation. A gap is created between the insulation and underlay at the eaves so that air comes into the roof space and out the other side.

Introducing this type of low-level ventilation is a relatively straightforward process as part of a new roof construction and it can also be retrofitted to solve a recognised problem. Redland provides a number of component options to integrate this ventilation into the roof system.

While eaves-to-eaves ventilation is a good starting point it will not necessarily solve the condensation problem on its own. This is because it is dependent on wind to create the through-draft necessary to take the water vapour out of the roof space and factors such as lack of wind or building orientation can reduce the effectiveness of this method of ventilation.

Moreover, for steeply pitched roofs a through-draft from eaves to eaves may not be totally effective in removing pockets of stagnant moist air trapped in the apex.

Consequently we always recommend a combination of low and high level ventilation for cold roofs where a vapour permeable or non-breather underlay is in use. The only exception is where a well-sealed ceiling can be achieved: in this case with a vapour permeable underlay the roof can function with just high level ventilation.

The high level ventilation product, situated either at or near the ridge of the roof (perhaps in the second course of tiles down) is an effective form of passive roof ventilation in all weather conditions: it forms a stack effect, creating a draw that is not dependent on wind.

We published our own technical guidance document on this issue in 2011 and the conclusions are in accordance with both NHBC recommendations and the British Standard BS 5250.
